Door Leaf

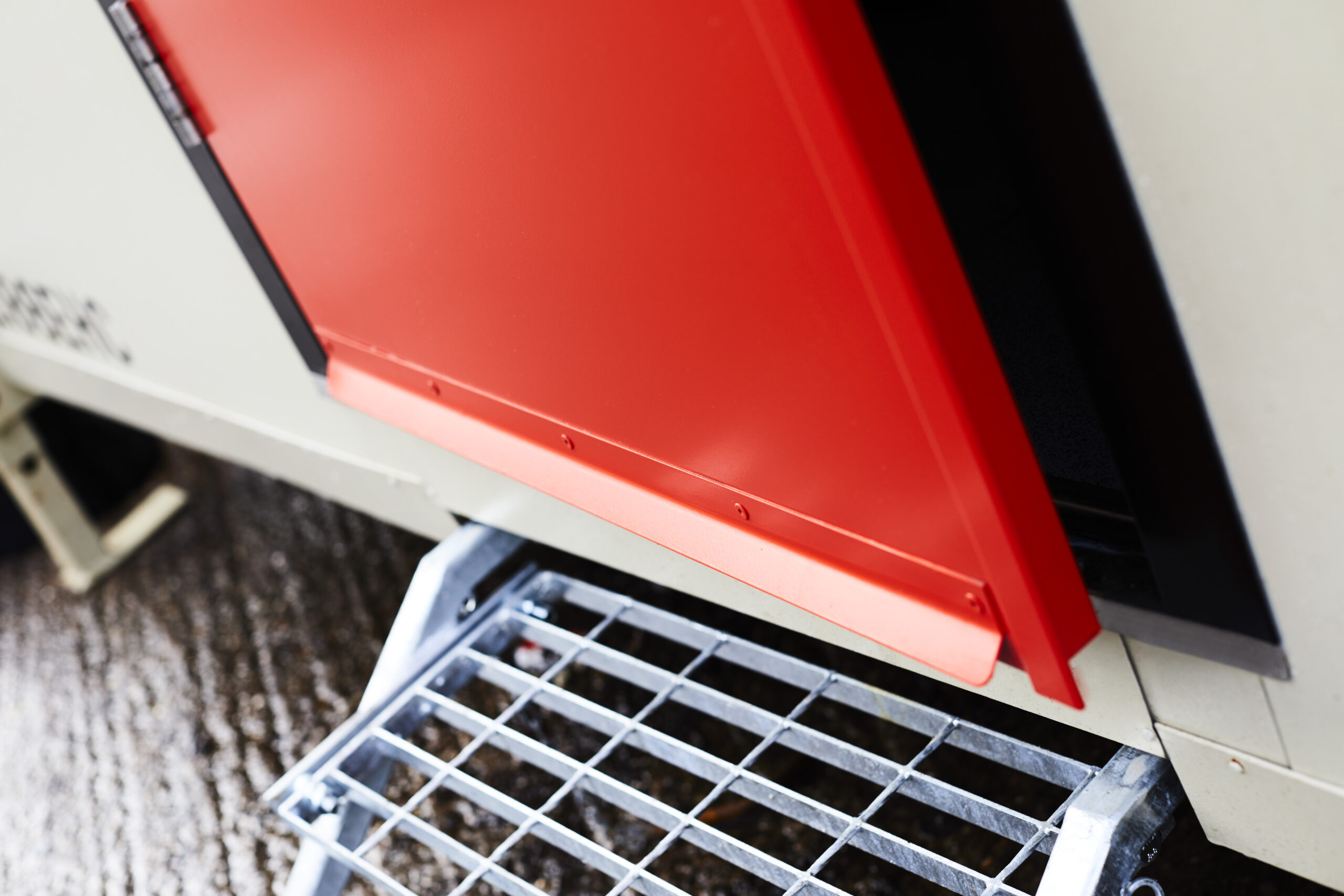

• Anti-jemmy flange on the leading edge (square edged option available)

• 1.5mm galvanised steel (upgrades: 2.0mm galvanised or 1.5mm stainless steel, 304/316)

• Weld-free construction prevents premature failure

• Mineral wool core with internal strengtheners (chipboard upgrade for added strength).

Thresholds

• Standard DDA-compliant chamfered profile in 2mm stainless steel

• Options: raised/extended cills, inward-opening profiles with drainage, 4mm ramped design

• Integrated removable thresholds available.

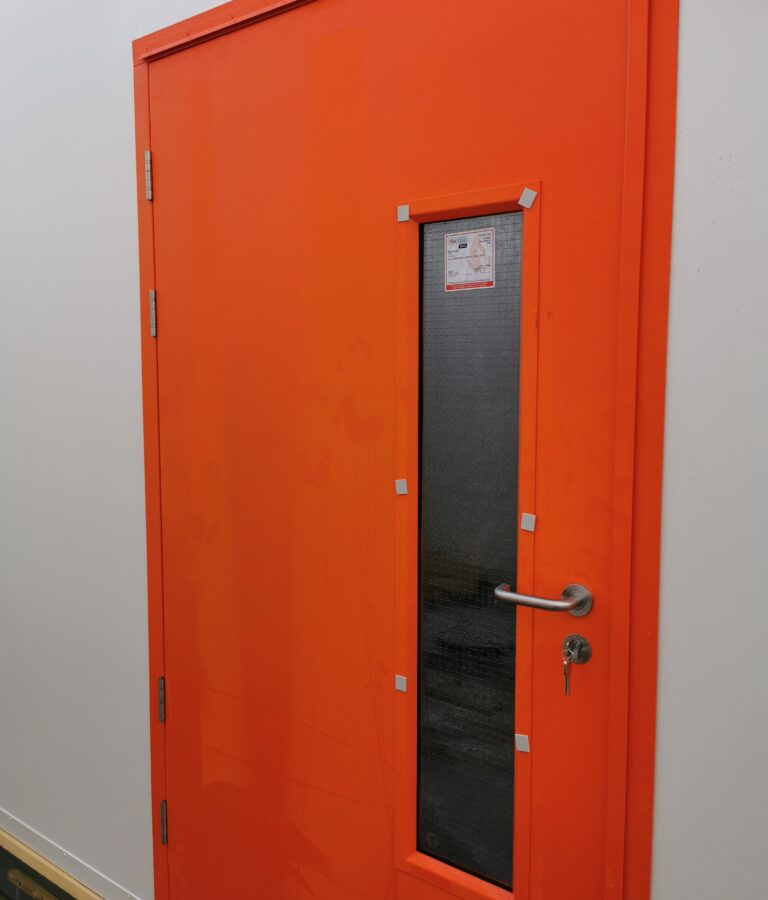

Vision Panels/Louvres

• Custom-sized vision panels in rectangular, square, or round styles

• Single, double, or triple glazed options with privacy films, blinds, and obscure glass

• Louvres: medium-duty aluminium or heavy-duty steel (150mm to full-door).

Frames

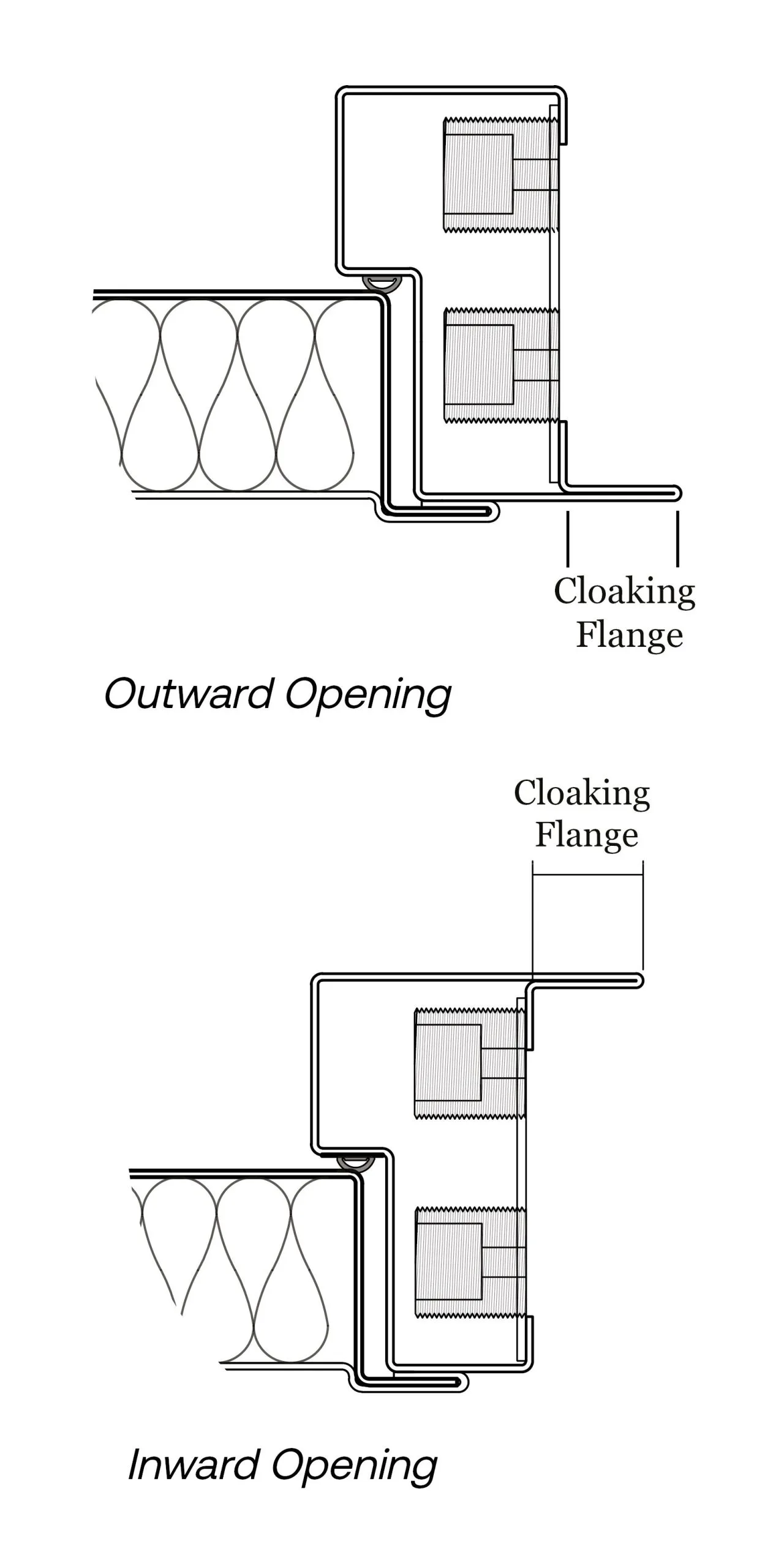

• 1.5mm galvanised steel with built in cloaking profile

• Bolted corners for strength

• Threaded adjustors for easy installation (16+ fixings). Optional plain fixing plates

• 3mm steel hinge brackets

• Insulated frames available.

Seals

Tubular silicone rubber seal bonded into frame for optimal weather, thermal, and acoustic performance.

Key Information

Ratings

Fire Rated Option

Fire ratings up to 120mins for internal or external use are available as an upgrade with this doorset upgrade.

Thermal Performance

Standard U-value: 2.2 W/m²K (upgradeable to 1.4 W/m²K with Thermaguard Technology).

Acoustic Option

Acoustic-rated option available (requires automatic drop seal).

Hardware & Finishes

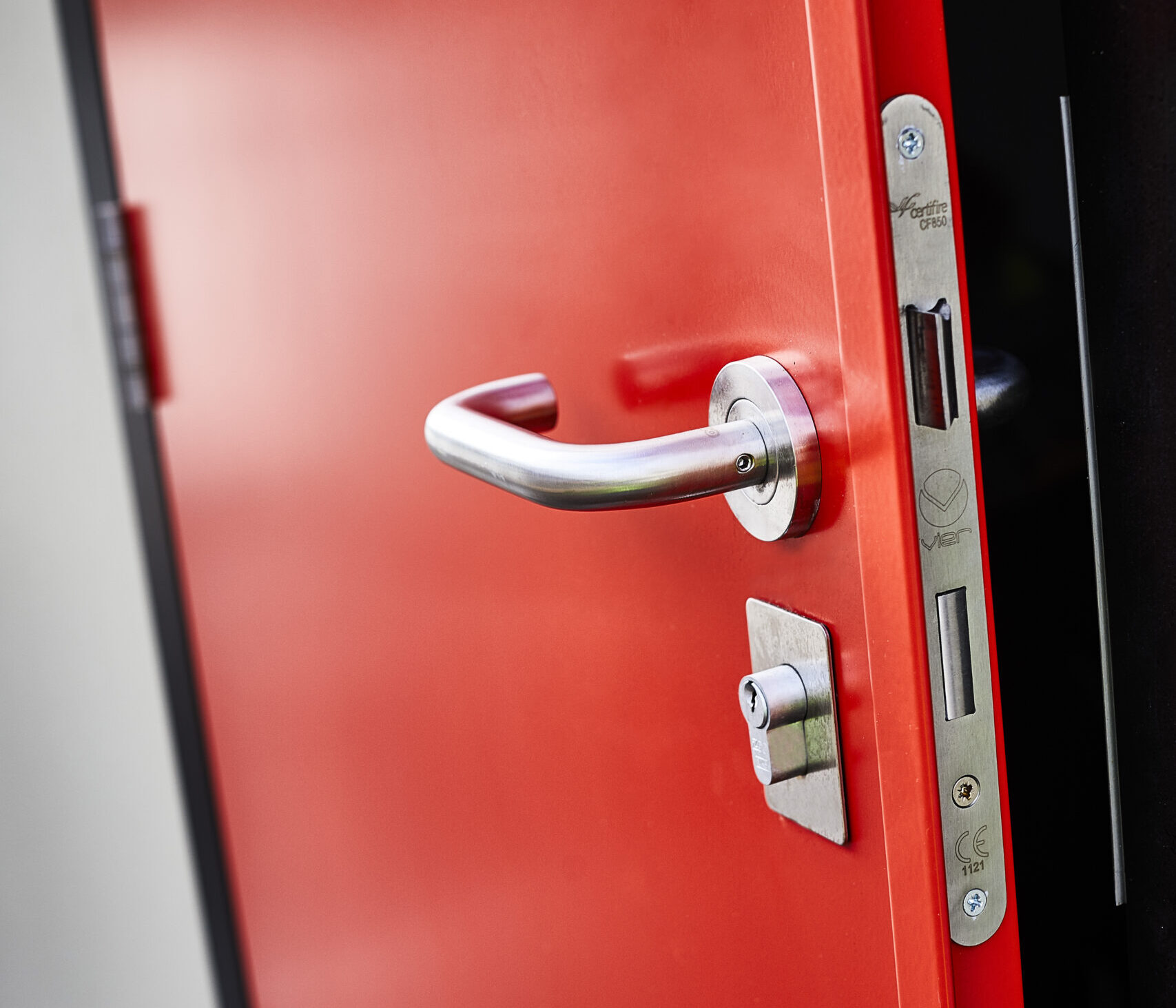

Hardware

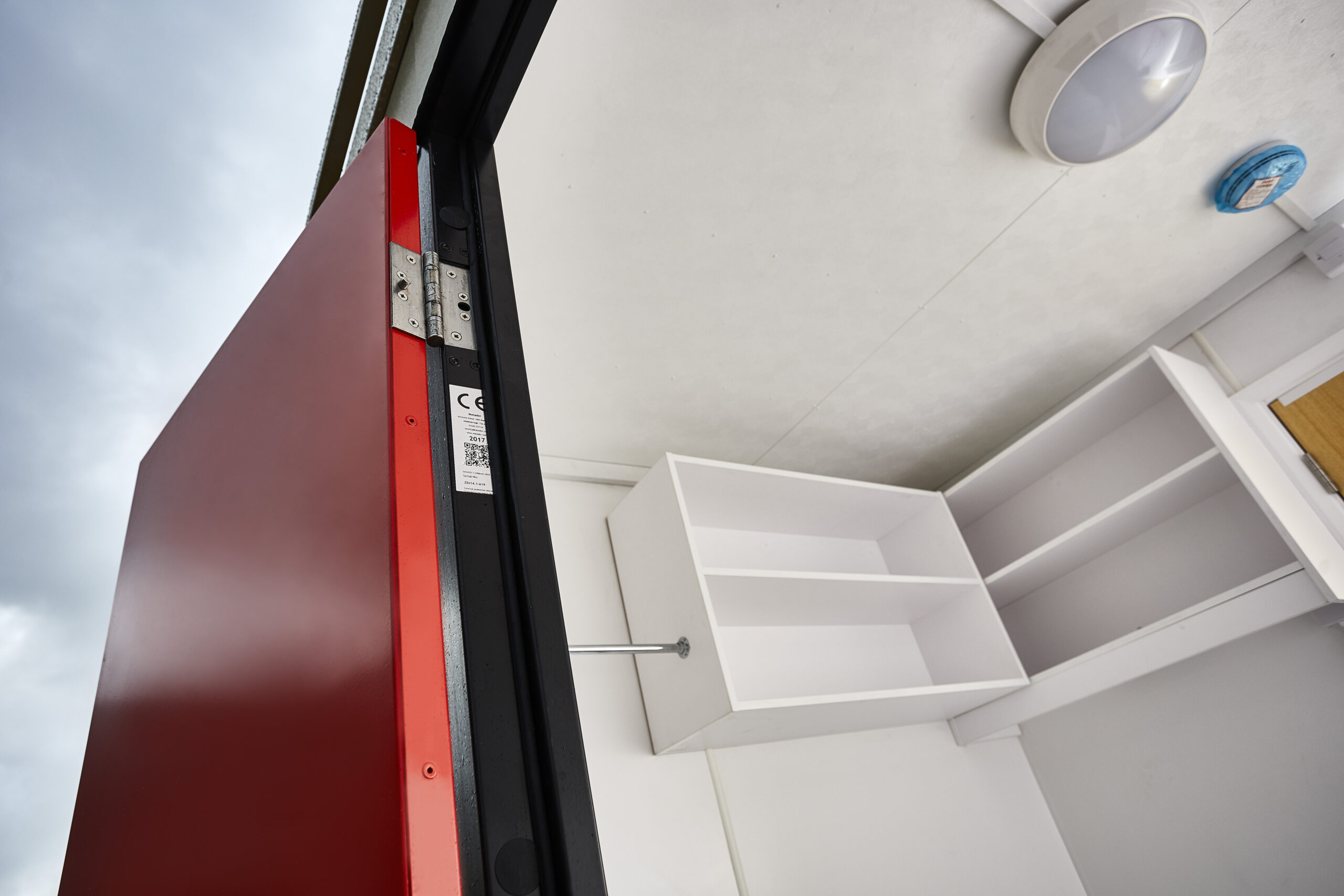

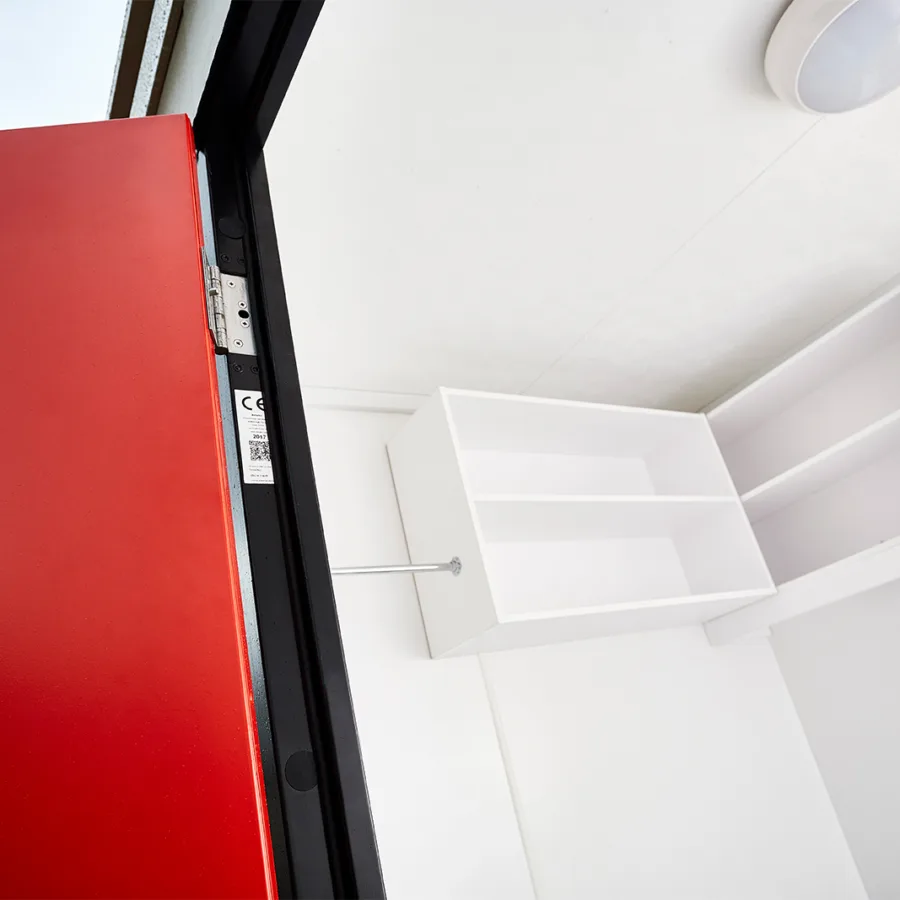

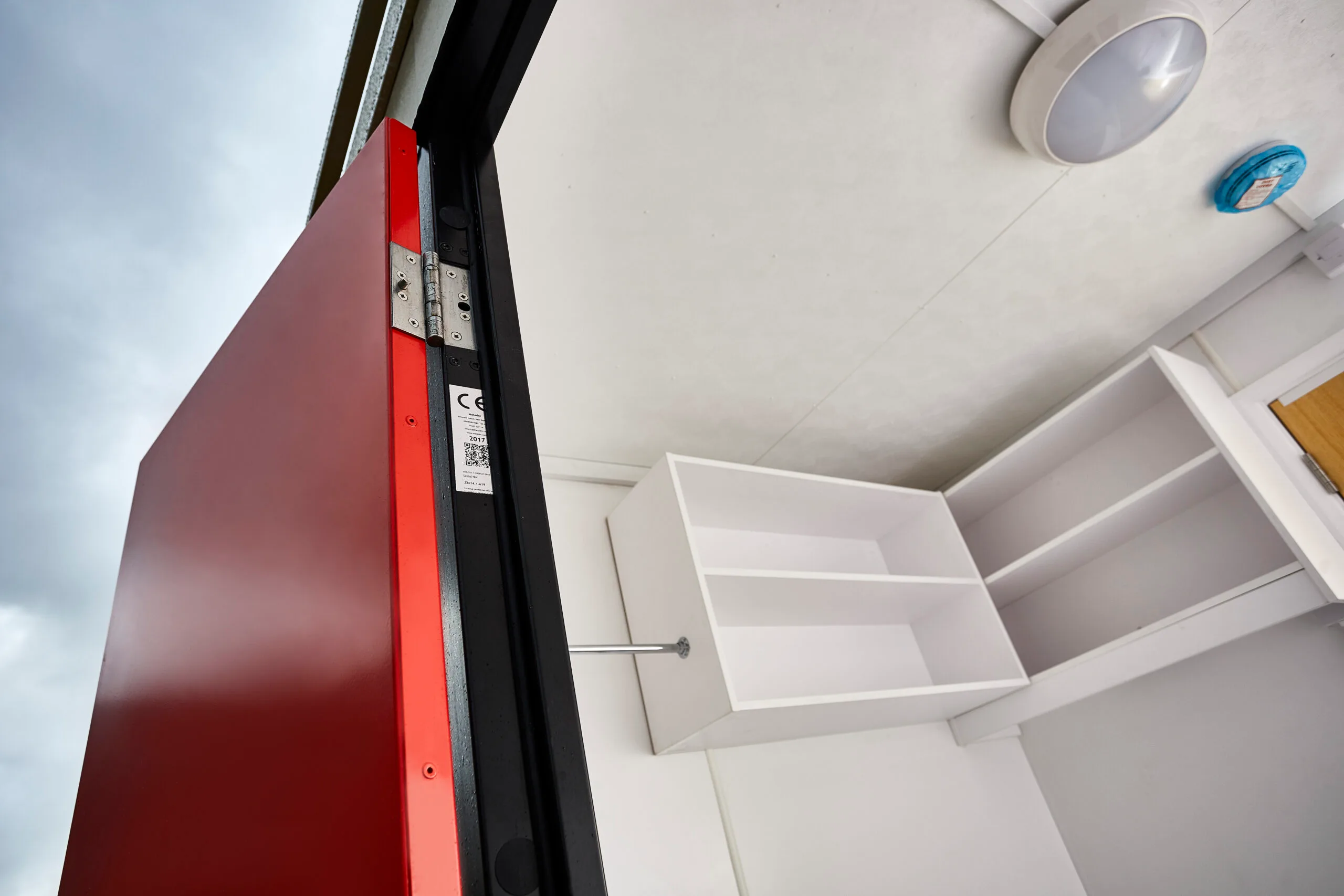

• Stainless steel ball bearing hinges (4+ per door, with security dogbolts)

• Upgrade options: concealed bearings, special finishes, fully concealed, heavy-duty continuous hinges

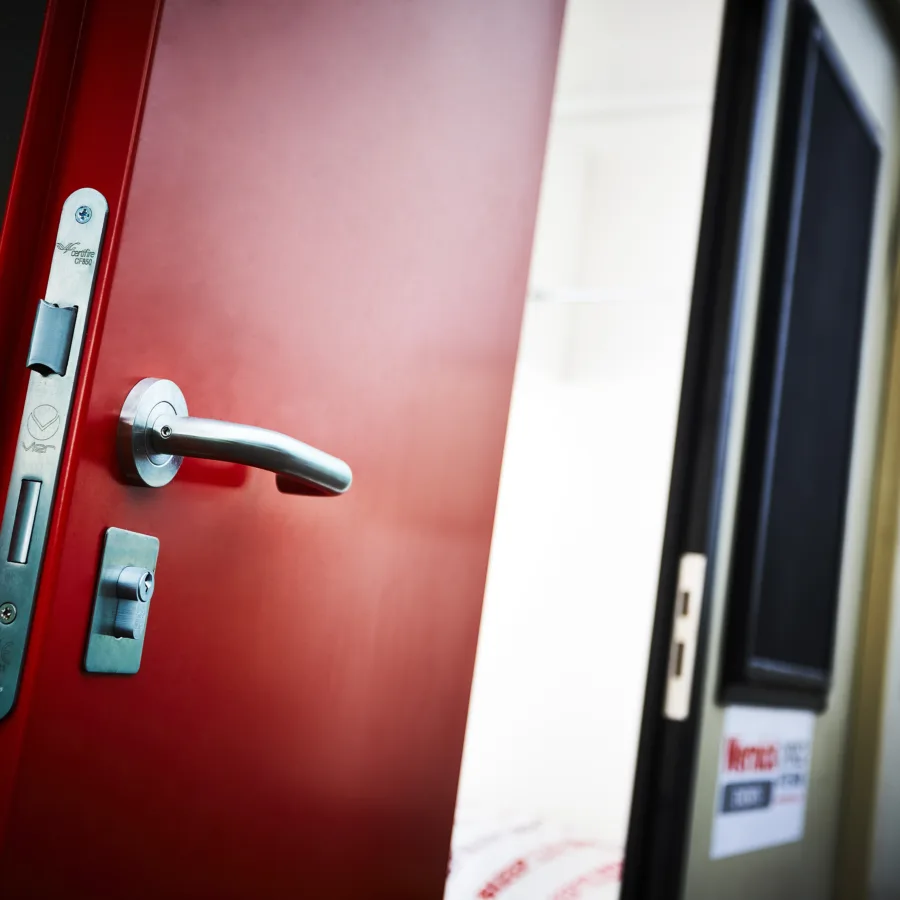

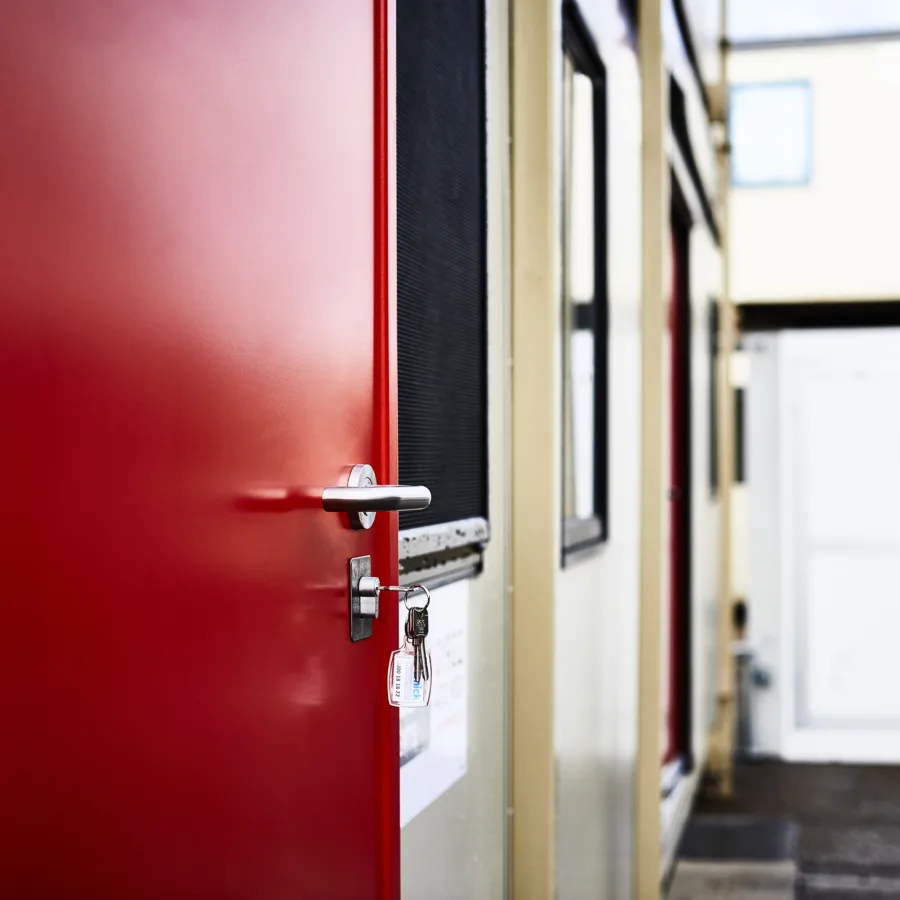

• Extensive hardware range: locks, latches, handles, panic hardware, closers, and stays. Custom hardware integration available.
