Defender Fireshield

Our bespoke fire-rated doorset, offering up to four hours of protection for a range of commercial, industrial and leisure environments.

Enquire

Single Door

Double Door

Vision Panel

Fire Rated

DDA Compliant

Door Leaf

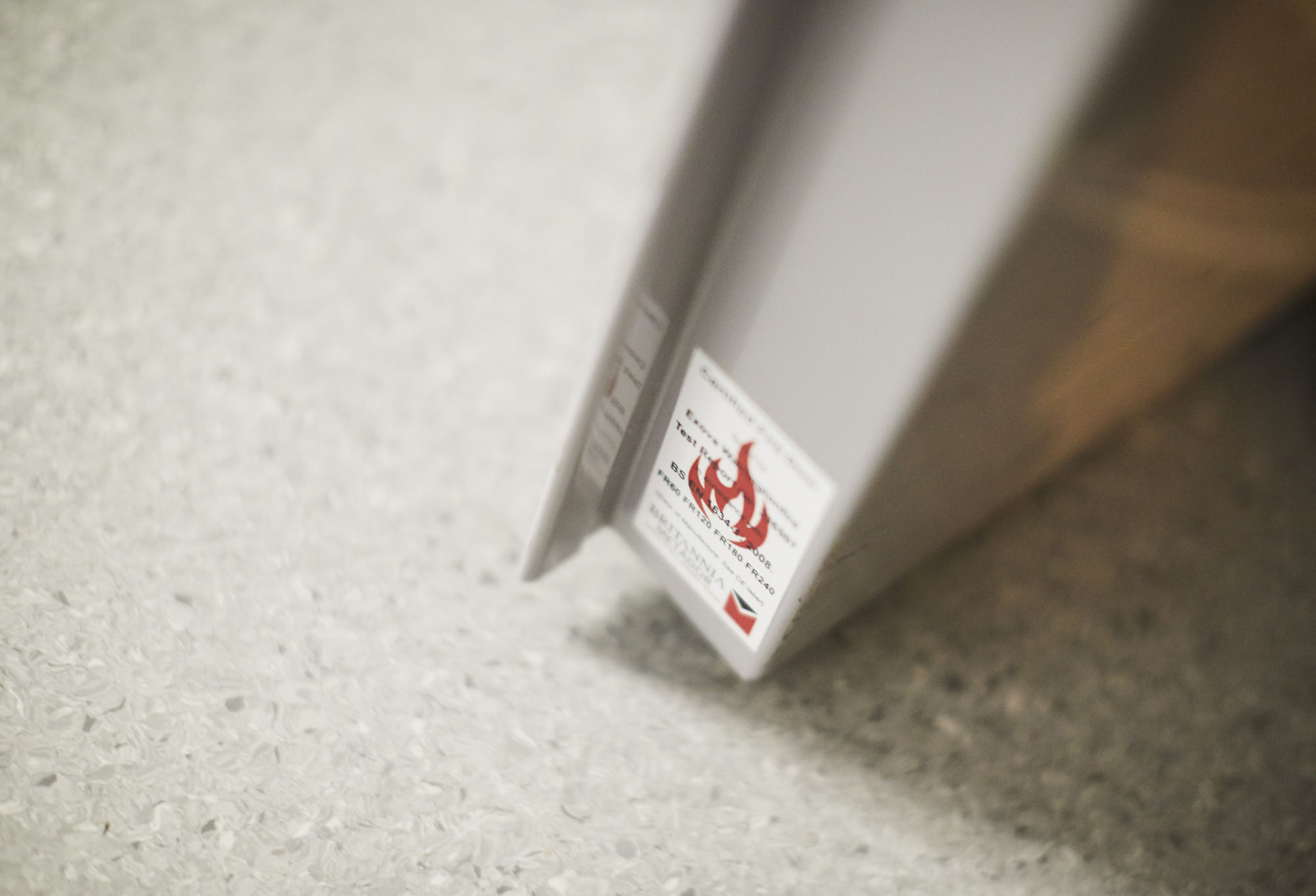

Manufactured from two 1.5mm Galvanised* steel skins, folded and mechanically fixed to form a strong and rigid 45mm thick door leaf, filled with internal steel strengtheners and mineral wool for ultimate insulation. Anti-jemmy flanges to the leading edge of the leaf provide excellent jemmy resistance.

Frame

90mm frames are pressed from 2mm Galvanised* steel to form a single rebated profile. Profiled headers form a smooth butt joint with the vertical posts and are joined together utilising strong M8 bolts to provide positive rigidity. The special fast fit frame is able to compensate for most irregularities in the opening with 8no threaded fixing adjusters per doorset. They permit a tolerance of up to 18mm on each side of the door. Shims and packers are not necessary making an extremely secure fix. Frames can be insulated if required.

Threshold

DDA compliant 2mm stainless steel threshold bolted into the vertical frame posts. Available in outward opening, inward opening and ramped.

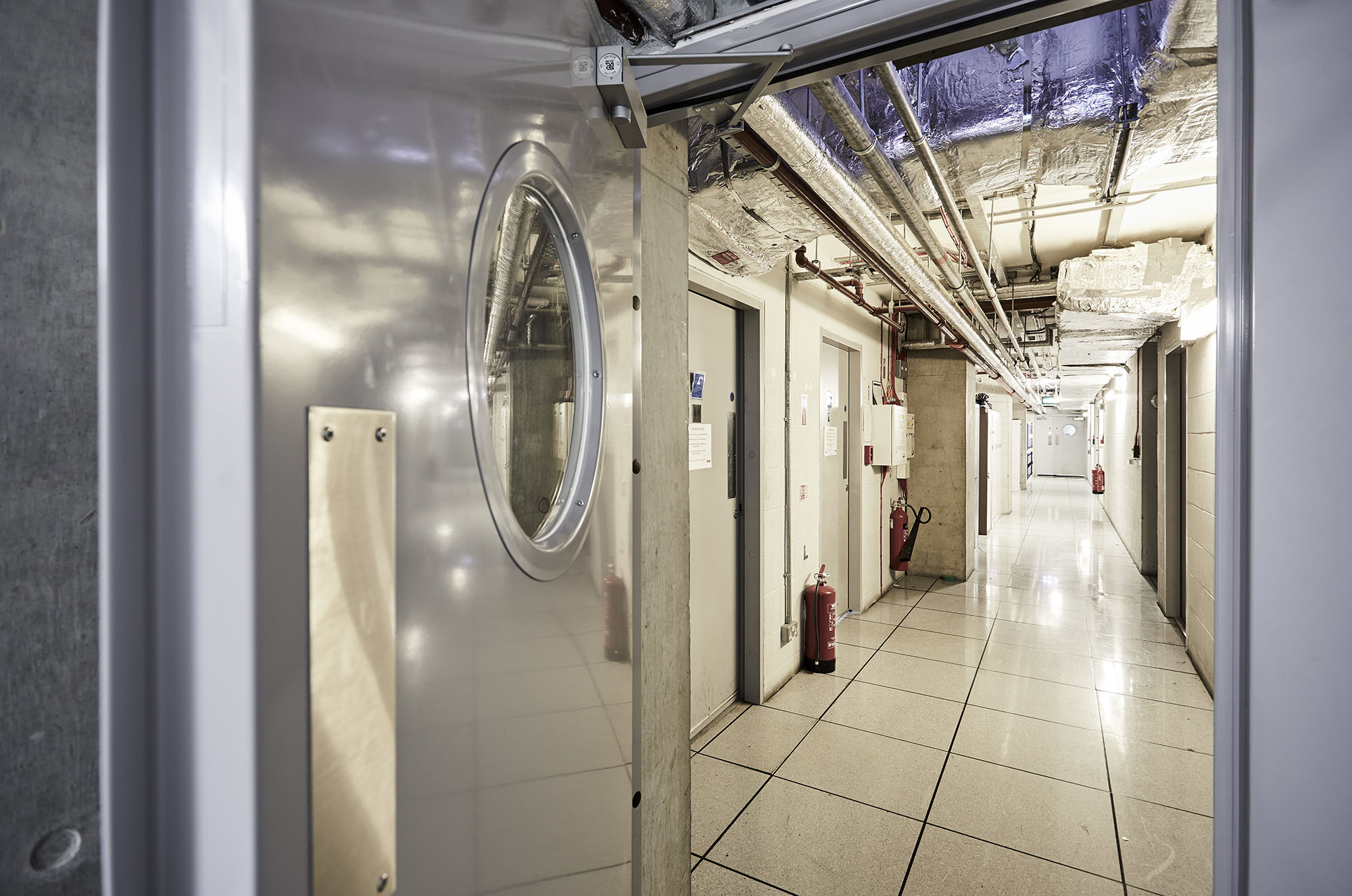

Vision Panels and Glazing Systems

The active leaf in fire test WF 336507 included two vision panels with the upper panel having overall dimensions of 203mm wide x 711mm high. And the lower panel 203mm wide x 508mm high. This test demonstrated that the inclusion of vision panels will not be detrimental to a fire performance of unlatched door leaves for a period of up to 240 minutes.

For doorsets that are required to have 120 minute fire resistance, the height of the vision panel can be increased by 15% and the maximum area to be increased by 20%. The maximum permitted vision panel dimensions are 818mm high or 416mm wide, subject to a maximum area of 0.17m².

Hardware

Door leaves are hung from 4no stainless steel hinges for smooth operation and optimum weather resistance. Security dog bolts secure the leaf into the frame if the hinges are attacked. Additional hardware includes a range of locks, latches, lever handles, panic hardware, closers and stays. On double doors, lever-action flush bolts can be installed within the leading edge of the inactive door leaf.

Finish

Available in any RAL or BS standard or marine-grade powder-coat finishes.

Seal

For optimum weather, thermal and acoustic performance, a tubular silicone/rubber smoke seal is bonded into the frame rebate to ensure effective sealing of the door/frame gap.

*Magnelis steel is offered as an alternative. Please enquire.



Download Resources

Our Fireshield bespoke fire-rated doorset, adds up to four hours of fire protection to its superior strength.   As always, thicker steel means stronger steel, our leaf skins are a full 56% stronger than standard.
Find Out More Enquire

Image Gallery

50%
Longer Lasting
56%
Stronger Steel
33%
Warmer
25%
Faster Installation
