Door Leaf

• Anti-jemmy flange on the leading edge (square edged option available)

• 1.5mm galvanised steel (upgrades: 2.0mm galvanised or 1.5mm stainless steel, 304/316)

• Weld-free construction prevents premature failure

• Mineral wool core with internal strengtheners (chipboard upgrade for added strength).

Thresholds

• Standard DDA-compliant chamfered profile in 2mm stainless steel

• Options: raised/extended cills, inward-opening profiles with drainage, 4mm ramped design

• Integrated removable thresholds available.

Vision Panels & Louvres

• Custom-sized vision panels as compliant with PAS24 regulations

• Louvres compliant with PAS24 available.

Frames

• 90mm single rebate frame in 2.0mm galvanised steel (stainless option available)

• Custom dimensions and alternative profiles (double rebated, face-fixed, ModuleX integral cloaking and more)

• Bolted corners for strength

• Threaded adjustors for easy installation (16+ fixings). Optional plain fixing plates

• 3mm steel hinge brackets. Insulated frames available.

Seals

Tubular silicone rubber seal bonded into frame for optimal weather, thermal, and acoustic performance.

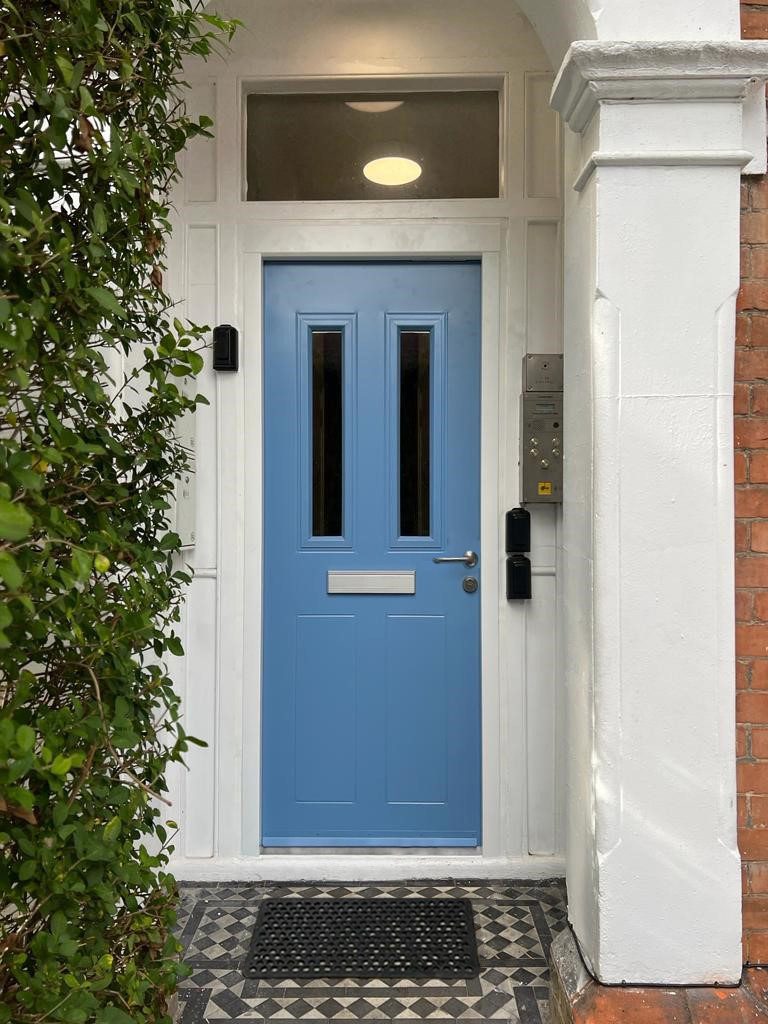

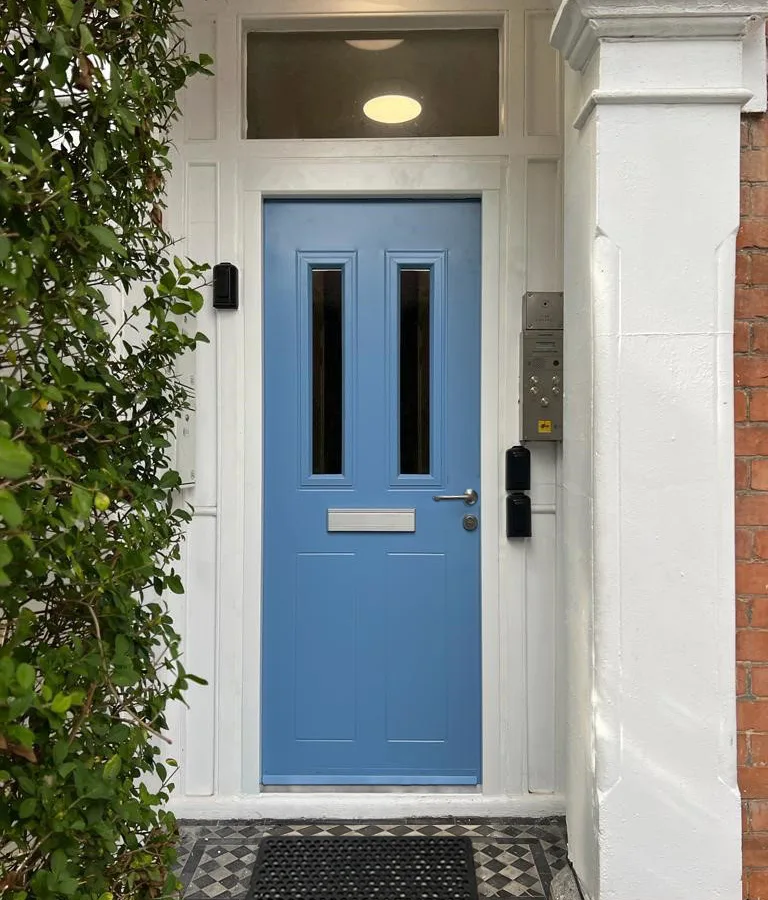

Over Panels & Side Panels

• Designed to expand openings, these panels integrate seamlessly with Defender PASguard doorsets

• Removable overpanels/transoms: Ideal for periodic access (e.g. large machinery)

• Glazed panels: PAS24 rated glazing with weathertight wedge-gasket seals.

Key Information

Resources

Defender PASguard Datasheet pdf (547.9 KB)

Defender Thermaguard Datasheet pdf (384.8 KB)

Hardware & Finishes

Hardware

• Stainless steel ball bearing hinges (4+ per door, with security dogbolts)

• Upgrade options: concealed bearings, special finishes, fully concealed, heavy-duty continuous hinges

• Extensive hardware range: locks, latches, handles, panic hardware, closers, and stays. Custom hardware integration available.

Fire Rated Option

Fire ratings up to 120mins available as an upgrade with this doorset.

Thermal Performance

Standard U-value: 2.2 W/m²K (upgradeable to 1.4 W/m²K with Thermaguard Technology).

Acoustic Option

Acoustic rated option available (requires automatic drop seal).

Finishes

• Powder coated in any RAL colour (marine-grade option available)

• Special finishes: textured, metallic, and woodgrain effects for a premium look.

Technical Information

Structural Opening Sizes (mm)*
	Max Width	Max Height	Tested Sizes (WxH)
Single Leaf	1470	3800	1050 x 2150
Double Leaf	2860	3800	2240 x 2150
**Based on a 33mm wide frame. For oversized doors, please enquire
