Fire Rated Doors

Defender Fireshield

Our custom internal fire rated doorset.
Due to its superior strength, the Defender Fireshield offers up to 120 minutes of fire protection for internal use.

Enquire Thermally Rated Internal Use Fire Rated Acoustic Double Door DDA Compliant Single Door Vision Panel Louvred Door Side and Over Panel

Defender Fireshield doorsets have been successfully tested to BS EN 1634-1:2008. They offer 30, 60, 90, and 120-minute internally fire-rated doorsets. They are available with a wide range of ironmongery and glazing options.

Enquire
See All Colours

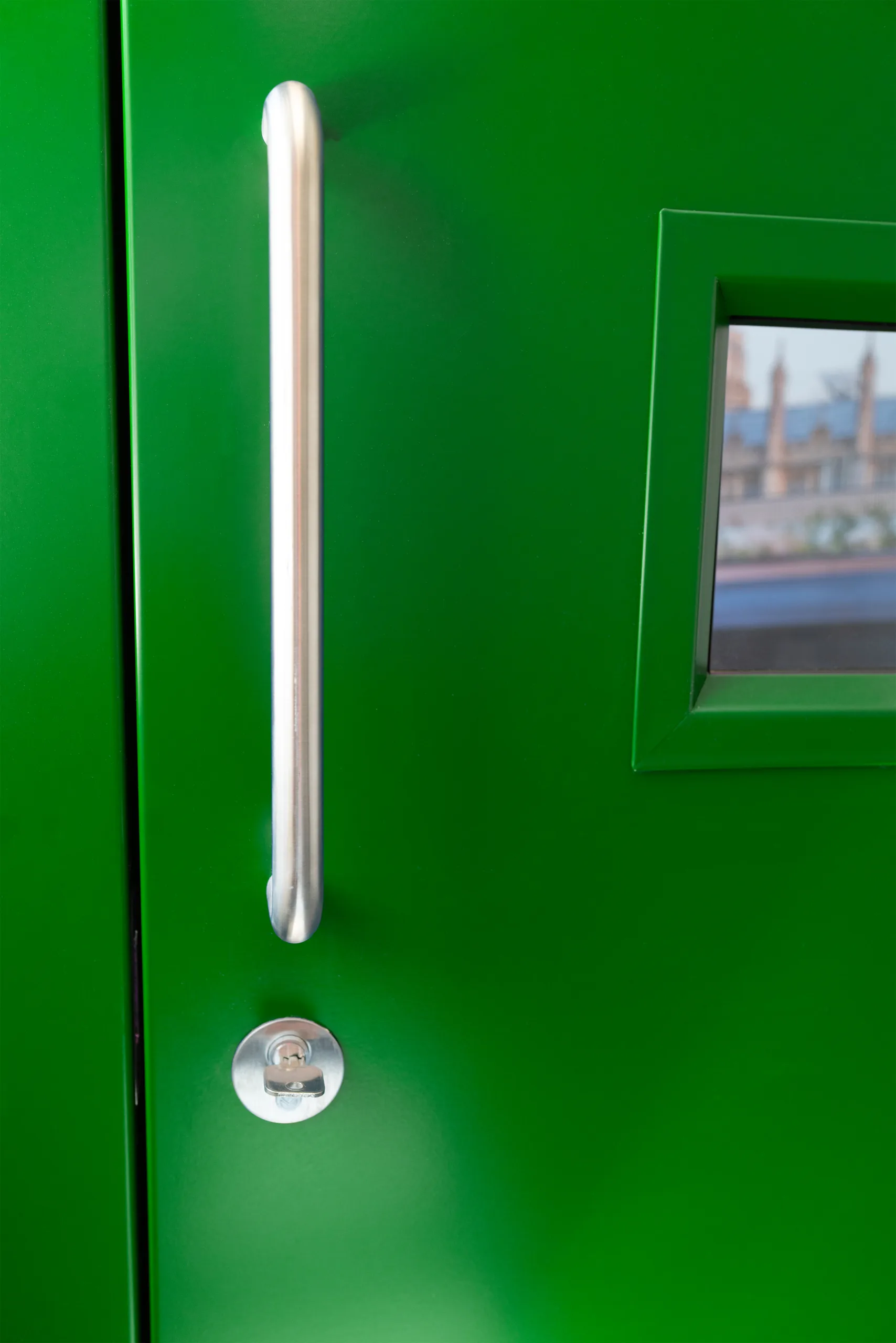

Door Leaf

• Anti-jemmy flange on the leading edge (square edged option available up to 60 mins)

• 1.5mm galvanised steel (upgrades: 2.0mm galvanised or 1.5mm stainless steel, 304/316)

• Weld-free construction prevents premature failure

• Mineral wool core with internal strengtheners.

Thresholds

• Standard DDA-compliant chamfered profile in 2mm stainless steel

• Options: raised/extended cills, inward-opening profiles with drainage, 4mm ramped design

• Integrated removable thresholds available.

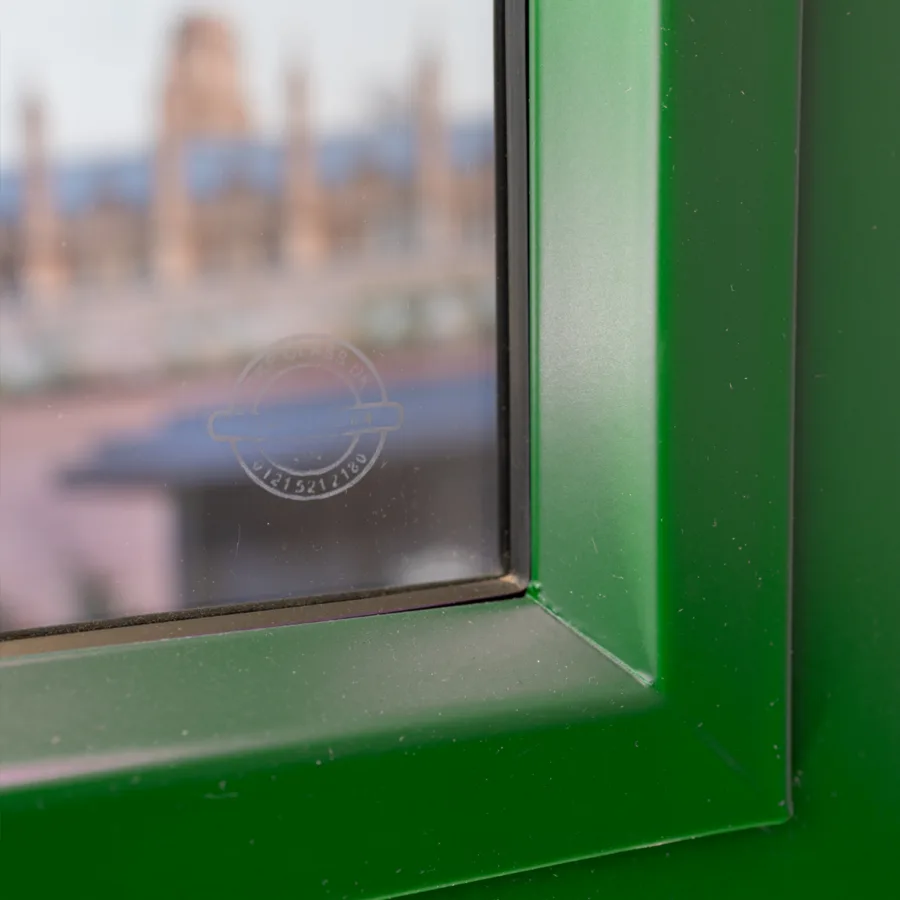

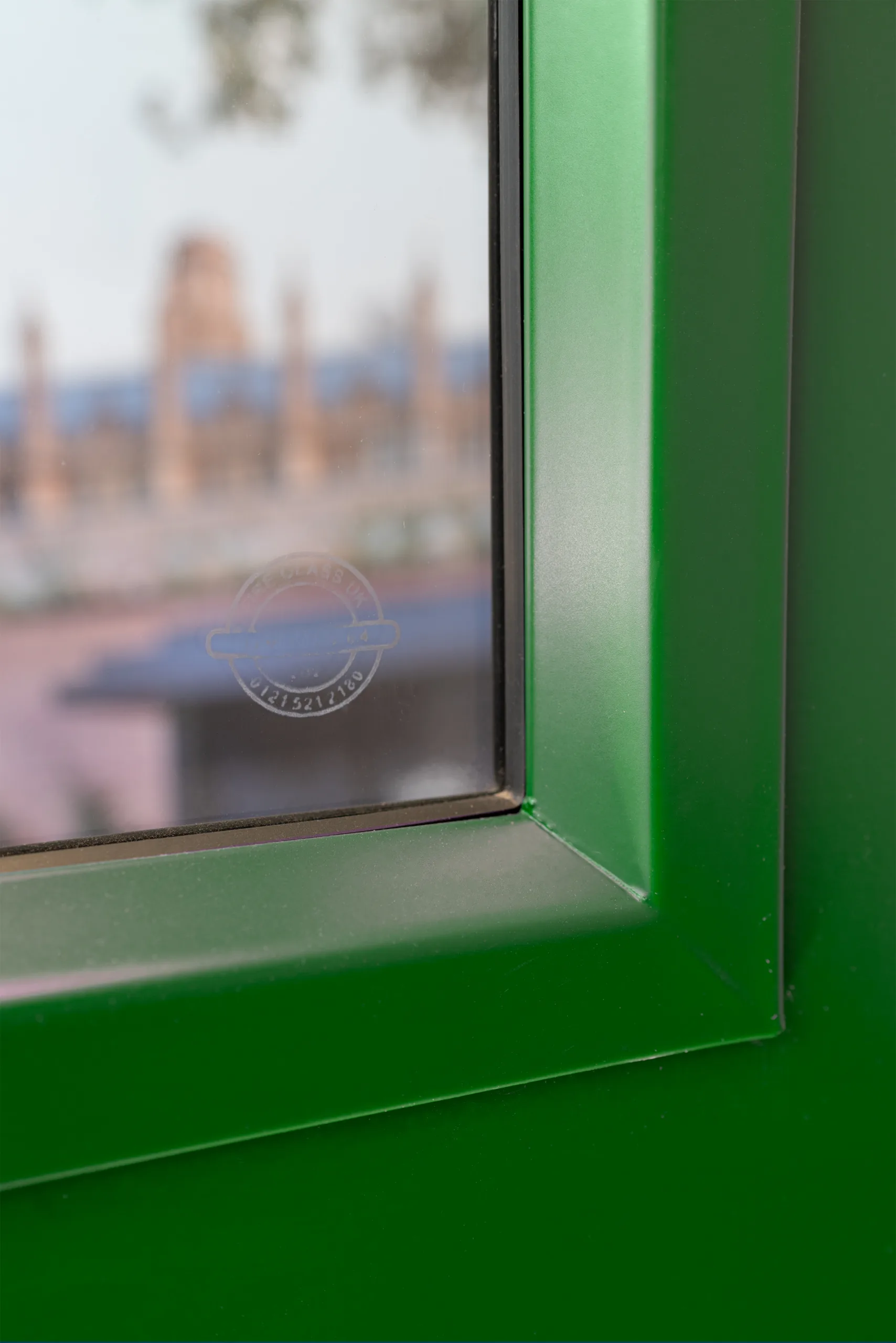

Vision Panels/Louvres

• Custom-sized vision panels in accordance with testing

• Single, double, or triple glazed options with privacy films, blinds, and obscure glass

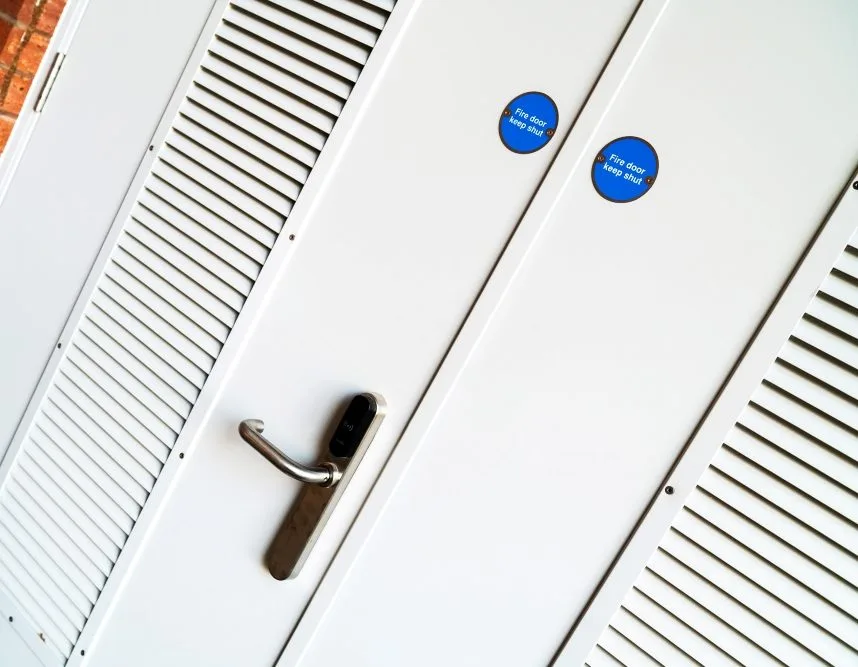

• Louvres: medium-duty aluminium or heavy-duty steel (150mm to full-door).

Frames

• 90mm single rebate frame in 2.0mm galvanised steel (stainless option available)

• Custom dimensions and alternative profiles (double rebated, face-fixed, ModuleX integral cloaking and more)

• Bolted corners for strength

• Threaded adjustors for easy installation (16+ fixings). Optional plain fixing plates

• 3mm steel hinge brackets. Insulated frames available.

Seals

Tubular silicone rubber seal bonded into frame for optimal weather, thermal, and acoustic performance.

Over Panels/Side Panels

• Designed to expand openings, these panels integrate seamlessly with Defender Fireshield doorsets

• Removable overpanels/transoms: Ideal for periodic access (e.g. large machinery)

• Glazed panels: Single or double glazed with weathertight wedge-gasket seals

• Louvred panels: Medium-duty aluminium or heavy-duty steel cassettes (optional insect/rodent mesh).

Key Information

Defender Fireshield Datasheet pdf (372.3 KB)

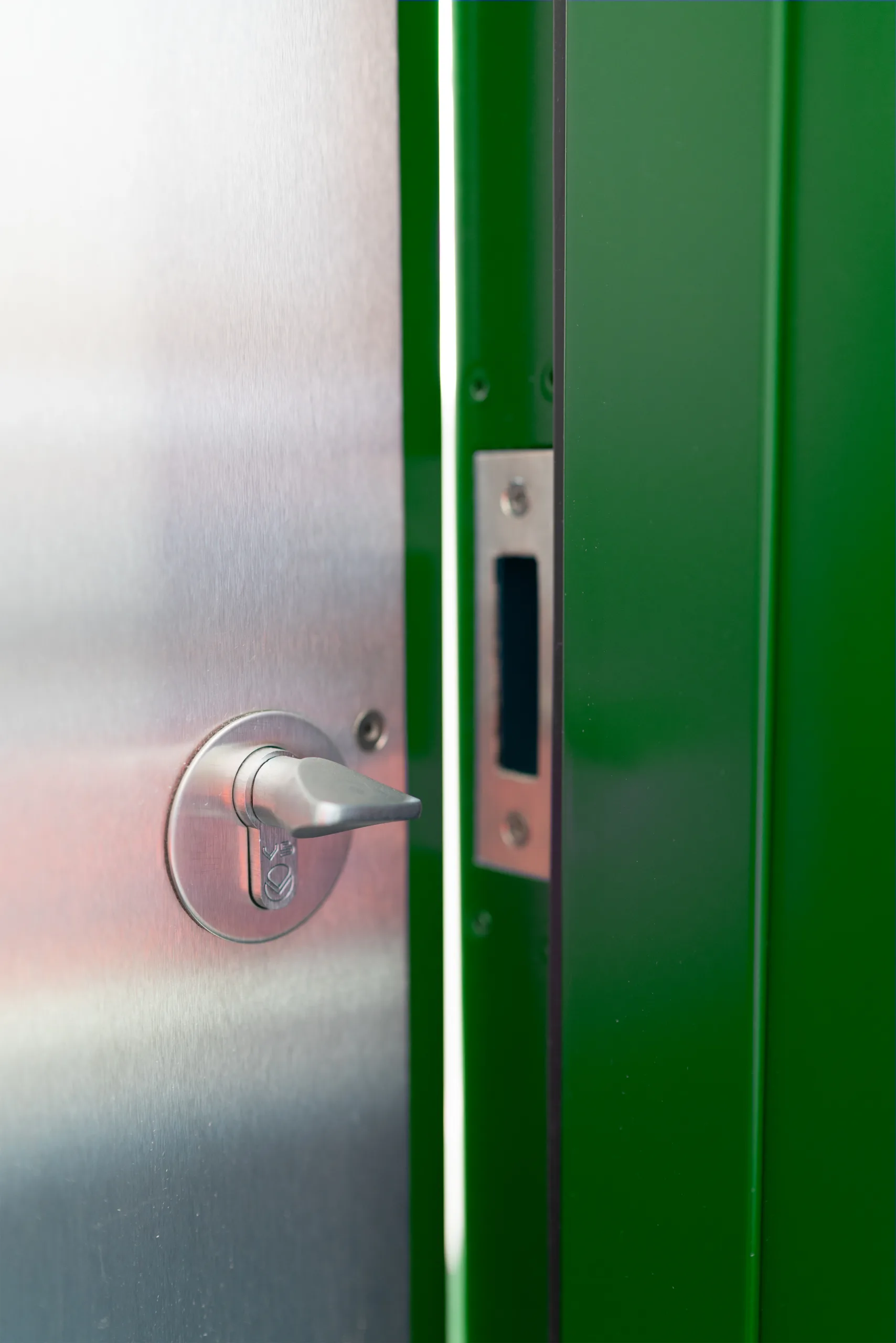

Hardware

• Stainless steel ball bearing hinges (4+ per door, with security dogbolts)

• Upgrade options: concealed bearings, special finishes and fully concealed

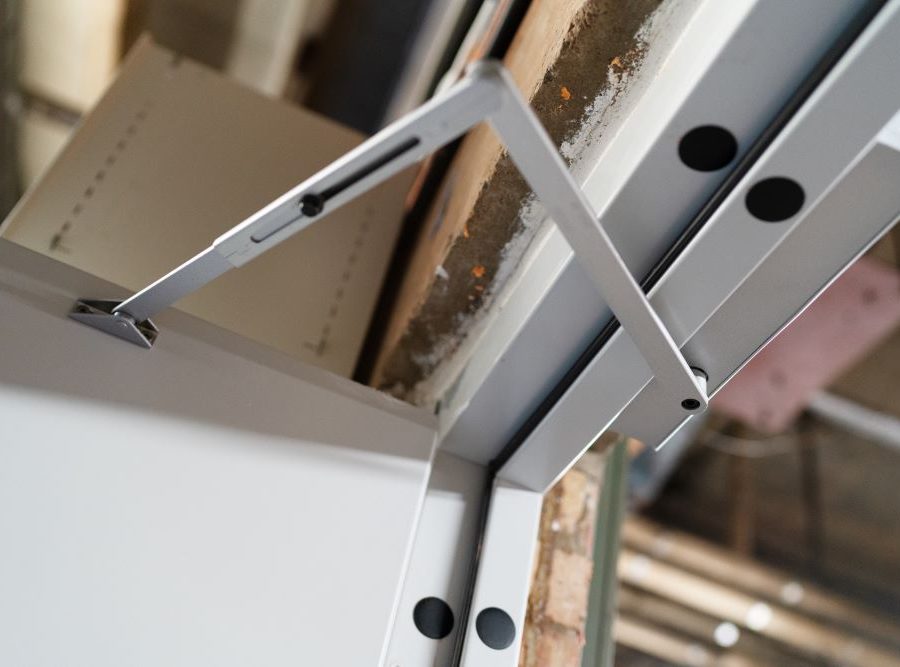

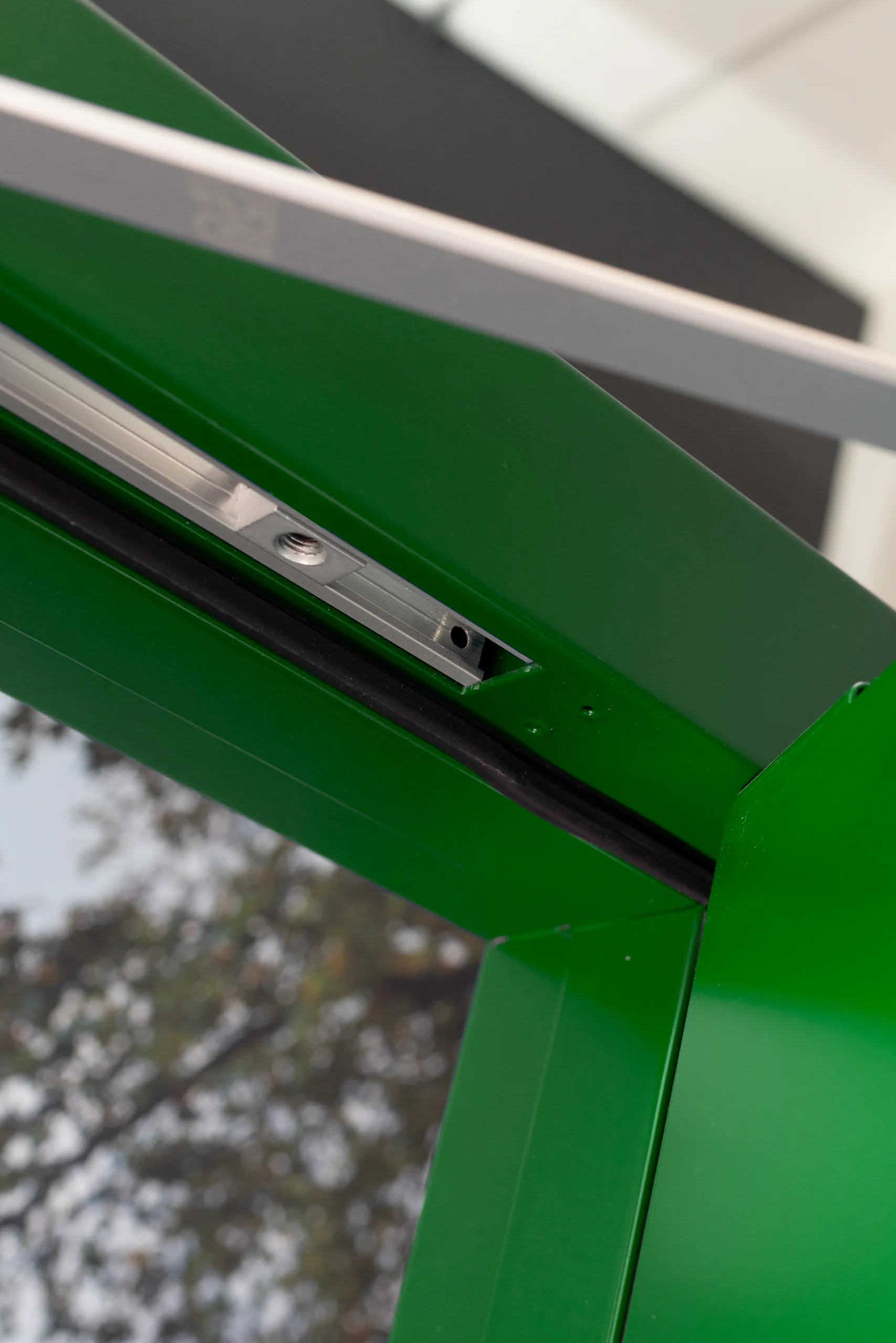

• Extensive hardware range: locks, latches, handles, panic hardware, closers, and stays.

Fire Rating

Fire ratings of up to 120mins for internal use are available as an upgrade with this doorset.

Thermal Performance

Standard U-value: 2.2 W/m²K (upgradeable to 1.5 W/m²K with Thermaguard Technology).

Acoustic Option

Acoustic-rated option available (requires automatic drop seal).

Finishes

• Powder coated in any RAL colour (marine-grade option available)

• Special finishes: textured, metallic, and woodgrain effects for a premium look.

Gallery

Made by Metador

View All +
Defender Fireshield Residential Property

"Installed for a private client in Epsom, who needed a high security fire rated door but wanted a “domestic” look.Working with the client we designed the door and the look which was then manufactured to the exact specification by Metador."

Defender Fireshield St Pancras Station

"Replacement fire door"
